Testing: Longitudinal Chromatic Aberration and focus shift
Lenses with focal ratios of f2.8 or larger are often prone to longitudinal color aberrations (loCA, a.k.a. “axial color” or “Bokeh CA”). These normally show up as magenta coloration in the foreground and greenish hues in the background and are not easily corrected in post-processing. The Sony FE 50mm f1.8 shows shows quite some loCA up to f2.0. The following 100% crops show the foreground on the left and the background on the right with the first crop at f1.8, second at f2.0, third at f2.8:
The following real life shot shows some magenta haloing around high-contrast edges even in the focal plane and a weak green outline around background subjects:
Sharpness and contrast
Let’s have a look at the theoretical performance of the Sony FE 50mm f1.8 first and compare it to some alternatives from Sony and Sigma:
The MTF chart for the Sony FE 50mm f1.8 shows 10 and 30 line-pairs per at f1.8 in green and at f8 in red. So it’s best to ignore the red lines in that chart for the comparison. The MTF charts of the Zeiss-designed Sony ZA lenses shows the contrast wide open at 10 lp/mm (in red), 20 lp/mm (green) and 40 lp/mm (blue). The Sigma Art shows 10 lp/mm (red) and 30 lp/mm (green) at f1.4. Higher values are better (more contrast) and the closer the solid and the dotted lines are together the less astigmatism (= resolution depends on the orientation of the test-pattern) the lens has. The x-axis displays the distance from the optical axis (=center of the sensor) in mm.
From the charts the Sony FE 50mm f1.8 looks pretty good in the center but sharpness shows a steep drop at 10mm image-height already – which should make the outer third of the APS-C image-circle clearly softer. The FE 55mm f1.8 ZA looks better than the FE 50mm f1.8 and the Sigma Art. Only the Sony FE 50mm f1.4 ZA shows a better performance in the full-frame corner. But let’s see how this theoretical performance of the lenses translates into real life results in the sharpness test based on Siemens-stars at 4 mm (center), 13 mm (APS-C-corner), and 20 mm (FF-corner) off axis. Processing was done in Lightroom 8/CRAW 11 from RAW to Adobe Color profile. Noise-reduction is set to 0, sharpening to 50/0.5/36/10, with no extra tone, color, or saturation adjustment. White-balance was adjusted to a neutral white and I did some exposure compensation to make the brightness of all crops match. So you will not see light fall-off in the corners.
The following 100% crops show the Sony FE 50mm f1.8 shot on a 42MP Sony A7R II from f1.8 down to f11.
These 100% crops directly from a 42MP Sony A7R II sensor show good performance within the APS-C image-circle wide open that improves to very good when stopped down to f2.8. The FF-corner looks soft until stopped down to f4.0 or f5.6. The lens also shows quite some field-curvature around the APS-C-corner: I had to re-focus to get the middle crop as sharp as it is shown here.
The following comparison shows the Sony FE 50mm f1.8, FE 55mm f1.8 ZA, FE 50mm f1.4 ZA, and Sigma 50mm f1.4 Art at f1.8. The Sigma Art was shot on a 46MP Nikon Z7 (mounted via Nikon’s FTZ adapter). Linear resolution of the Nikon Z7 sensor is only 4% higher than from the Sony A7R II sensor which favors the Sony lenses a bit in this comparison but should not make a distinct difference:
The Sony FE 50mm f1.8 has the least sharp center and also the softest FF-corner of the lenses compared here.
Performance at long distances
The Siemens-star test-targets are shot at a distance of 45x focal length (i.e. at around 2.2m). But as performance of lenses also depends on the shooting distance I did another series of test-shots of a city around 1 km away. Processing was done in Lightroom 8/CRAW 11 from RAW to Adobe Color profile with the lens-profile automatically applied. Noise-reduction is set to 0, sharpening to 50/0.5/36/10, with no extra tone, color, or saturation adjustment. I used autofocus at the largest aperture and did not change focus for other apertures. All shots of the Sony FE 50mm f1.8 were made on a 42MP Sony A7R II at ISO 100 and image stabilization switched off.
The main image shows the complete scene wide open to give you an impression of the angle of view and to judge vignetting. Following the main image are 100% crops from the Sony FE 50mm f1.8 from the center, the APS-C-corner and the FF-corner down to f11. You can access the respective full resolution shots up to f11 via the links beneath the main image or by clicking on the respective crops. Please respect our copyright and only use those images for personal use.
The Sony FE 50mm f1.8 is pretty sharp in the center at f1.8 albeit with some magenta haloing around high-contrast edges. But the APS-C-corner looks soft until stopped down to f4.0 and the FF-corner need stopping down to f5.6 to become really crisp.
The following comparison shows the Sony FE 50mm f1.8, FE 55mm f1.8 ZA, FE 50mm f1.4 ZA, and Sigma 50mm f1.4 Art at f1.8. All lenses were shot at the same day within minutes. Only the Sony FE 55mm f1.8 ZA was shot a few days later but under absolutely comparable atmospheric conditions:
In this long distance comparison the Sony FE 50mm f1.4 ZA is the sharpest in the center followed by the Sigma Art, Sony FE 55mm f1.8 ZA and the FE 50mm f1.8. In the APS-C-corner the Sigma Art and the Sony FE 50mm f1.8 are the softest while both Sony ZA lenses are of comparable acuity. In the FF-corner the Sony FE 55mm f1.8 ZA is amazingly clear with the FE 50mm f1.4 ZA coming very close while the Sigma Art and the FE 50mm f1.8 are visibly softer.
To make it easier to see light fall-off in the corners of a full-frame sensor I’ve arranged a series of shots with all three Sony standard prime lenses at different apertures for comparison. All images were developed to the same brightness in the center which matches the brightness of the border frame. Shading Compensation was set to Auto.
In the sample images above the Sony FE 50mm f1.8 shows quite some vignetting at f1.8. It is topped by the FE 50mm f1.4 ZA but that lens has a focal ratio of f1.4 and looks much better corrected from f2.0 onward.
Rendering of point-light sources at night-shots
Night-shots pose a different challenge for lenses as the contrast is even higher than under bright sun and point-light sources can reveal some weaknesses such as coma, haloing and color-aberrations that do not show up as prominently in other test-shots. The 100% crops below the main image show the effect of coma in the FF-corner of the Sony FE 50mm f1.8 and the other lenses at various apertures:
Both the Sony FE 50mm f1.8 and the Sigma Art show strong coma which is hardly reduced when stopped down to f2.0. The Sony FE 55mm f1.8 ZA shows only little coma but it’s still clearly visible when compared to the FE 50mm f1.4 ZA which is practically free of coma, even at f1.4.
Rendering of out-of-focus point-light sources
This test is for the rendering of point-light sources in an out-of-focus background. The circle of confusion that is produced by this test is pretty indicative of Bokeh performance (in the background) and light fall-off. Ideally the out-of-focus image of the point-light is evenly lit and perfectly circular, with no “onion-rings”, and without coloration. Large aperture lenses normally produce an effect known as “cat’s eye” the further away from the optical axis the point-light is projected. This is due to optical vignetting in the lens barrel when light enters the lens from an angle.
The Sony FE 50mm f1.8 produces the least desirable Bokeh balls of the lenses compared here: They are small, not perfectly circular even at f1.8, plus they show some onion rings, outlining and hot-spots. This is not a good starting position for a creamy Bokeh. The best performance here is from the Sigma Art.
Let’s see how this analysis of out-of-focus point-light sources translates into Bokeh-performance shooting a book-shelf.
As already expected from the last comparison the Sigma Art has the best Bokeh in the background and in the transition zone while the Sony FE 50mm f1.8 has the weakest Bokeh of the four lenses compared here. Of both Sony ZA lenses the FE 50mm f1.4 ZA has the smoother Bokeh helped by its focal ratio of f1.4.
50mm focal length may not be the classical choice for portraits on a full-frame camera but the Sony FE 50mm f1.8 can well be used for upper body or full body shots or offers an angle of view equivalent to an 75mm lens on a cropped APS-C sensor. And the background blur at closer shooting distances is nice enough to give it a try. All shots were done from the same position/distance so perspective does not change between shots. But due to the slightly different focal lengths of the lenses and different sensor resolutions of the cameras the images and crops show a little different framing and magnification. There are also some slight focus-differences which inevitably occur when you shoot a living, breathing subject.
Background blur is the nicest from the Sigma Art which also produces a pretty smooth transition in the model’s hair. Second are both Sony ZA lenses which render the background a bit nervous – the Sony FE 50mm f1.4 ZA looking even a bit more nervous than the FE 55mm f1.8 ZA. The FE 50mm f1.8 has the weakest Bokeh of the bunch.
Flare and ghosting
Catching a strong light-source shining directly into the lens is always a risky business: it could produce strange colorful ghost-images or reduce contrast considerably through flare and glare. The appearance of flare and ghosting depends on factors like the aperture and the angle of the light hitting the lens. So to judge the proclivity of the Sony FE 50mm f1.8 for these artifacts I went through a series of well calculated shots against a strong light source to provoke glare and ghosting.
The Sony FE 50mm f1.8 is not very prone to flare and ghosting artifacts but it is clearly worse than e.g. the FE 55mm f1.8 ZA. The following image at f11 is one of the most obvious examples:

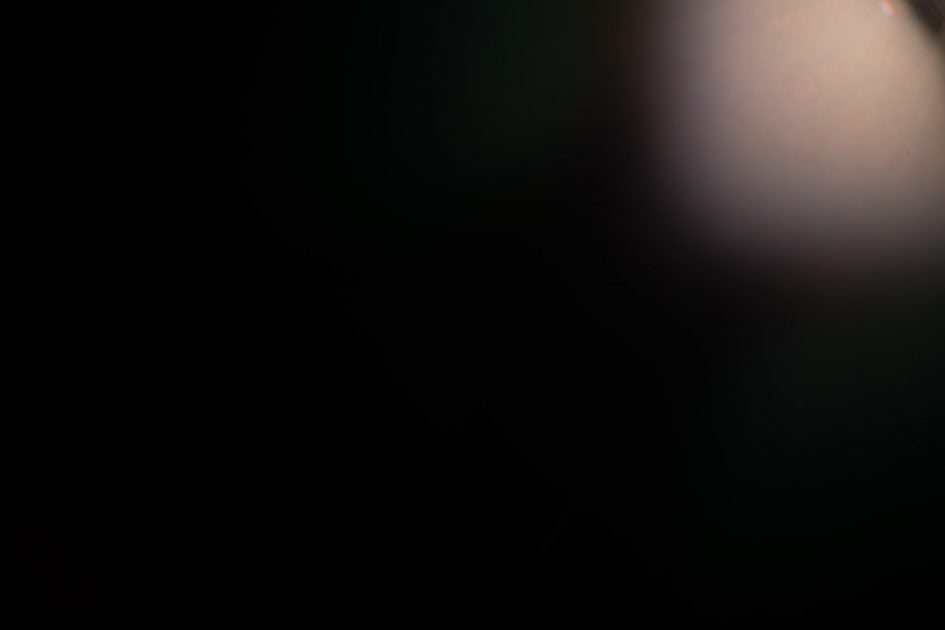

The little square inset in the upper left of the image shows the respective area with an exposure compensation of +3 EV to make it easier to see which levels of black the lens renders at that point. It shows that the Sony FE 50mm f1.8 does not render the deepest black against contra light, but I’ve seen worse lenses. And beware when the light is just outside the corner: it might produce a nasty glow. But this happens only in a very narrow angle:
All-in-all the Sony FE 50mm f1.8 is not bad, but it is clearly more susceptible to artifacts or a loss of contrast under adverse contra-light situations than the other lenses in this comparison.
