Quality

Longitudinal Chromatic Aberration and focus shift

With lenses offering an aperture of f2.8 or larger I test for longitudinal CA (loCA, a.k.a. “axial color” or “bokeh CA”). The new Sigma shows some magenta coloration in the foreground (left) and greenish hues in the background (right). This also shows up in real-life shots but is by comparison pretty moderate. By f4.0 the effect is gone. The test also revealed that there is no relevant focus shift.

loca_sigma_24f1-4_f1-4_78717

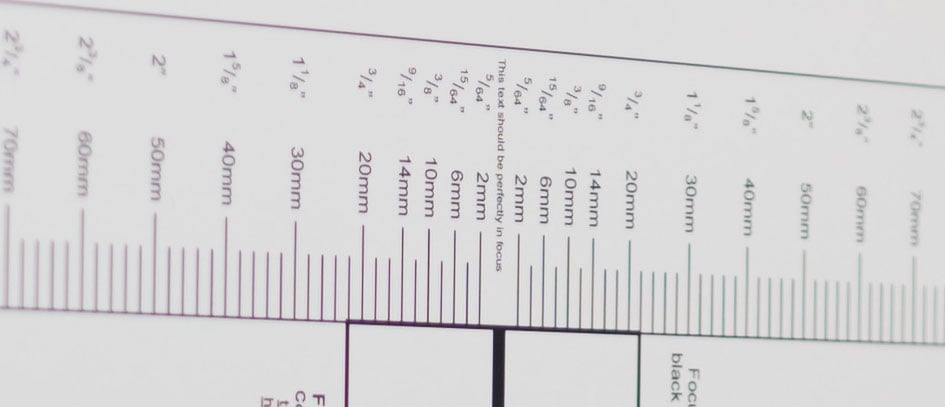

Above: Sigma 24/1.4 Art Longitudinal Chromatic Aberration (loCA) at f1.4. 100% crop, left = foreground, right = background

Sharpness and contrast

Let’s have a look at the theoretical performance of the Sigma lens first compared to the performance of the Nikon 24mm f1.4:

sigma24f1-4-art-vs-nikon-4f1-4g-mtf

Above: MTF of Sigma 24/1.4 Art (left), Nikon 24/1.4G (right), both at f1.4

These charts show the lens-performance at the largest aperture. Higher values are better and the closer the dotted and the continuous lines of each color are together the less astigmatism (= resolution depends on the orientation of the test-pattern) the lens has. The x-axis displays the distance from the optical axis (=center of the sensor) in mm. I’ll show you the real-life performance at 4 mm (center), 13 mm (DX-corner), and 20 mm (FX-corner) on a D810.

From the charts, the Sigma should perform slightly better than the Nikon. The Sigma starts at a higher contrast in the center but has a more pronounced drop towards the borders of the APS-C/DX image-circle (14mm) with another drop towards the corners of the FF/FX sensor. Its values still stay above those of the Nikon. Only the spread between sagittal and meridional performance is larger indicating higher astigmatism of the Sigma than the Nikon – at least on paper. But let’s see how this theoretical performance translates into real life results in the sharpness test based on Siemens-stars.

What follows are near-center results (first column) followed by APS-C/DX-corner results and FF/FX-corner results on a D810. The D810 results from the DX-corner should be a very good approximation for performance on a 16MP DX sensor (like the D7000), because the pixel-pitch of both sensors are the same. But differences in the AA-filter and micro-lens-design of a D810 and a D7000 might yield different end-results.

Processing was done in Lightroom 5.7.1 from RAW at Camera Standard settings. Noise-reduction is set to 0, sharpening to 35/0.5/36/10, with no extra tone, color, or saturation-adjustment. White-balance was adjusted to a neutral white and I did some exposure compensation to make the brightness match. CA-removal is ON.

The following are all 100% crops!

Sigma 24mm f1.4 Art on Nikon D810; 100% crop from center, APS-C/DX-corner, FF/FX-corner

sigma_24f1-4art_1-4

Above: 24mm, f1.4

sigma_24f1-4art_2-0

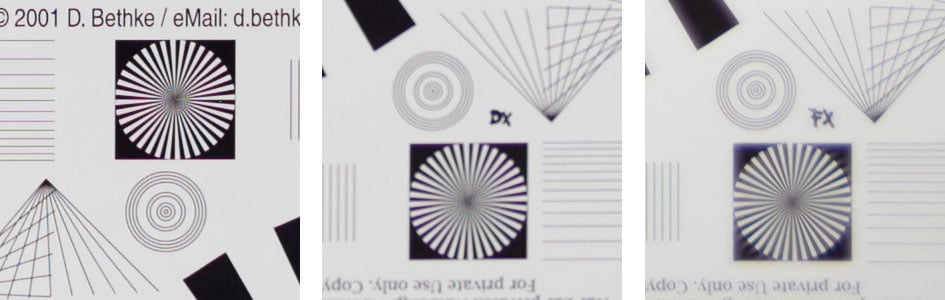

Above: 24mm, f2.0

sigma_24f1-4art_2-8

Above: 24mm, f2.8

sigma_24f1-4art_4-0

Above: 24mm, f4.0

sigma_24f1-4art_5-6

Above: 24mm, f5.6

sigma_24f1-4art_8-0

Above: 24mm, f8.0

sigma_24f1-4art_11

Above: 24mm, f11

These 100% crops directly from a 36MP D810 sensor shows a mixed performance of this lens. At f1.4 it’s very sharp in the center, but the DX-corner is mushy and the FX-corner is hazy and shows coma although you can see more details than in the DX-corner. Focus was optimized separately for each crop as there is some slight field-curvature. Stopping down to f2.0 brings the center to excellent sharpness while the DX- and FX-corner don’t improve much. The DX-corner needs stopping down to f5.6 to achieve good sharpness while the FX-corner improves visibly from f2.8 onwards. At f8.0 the lens is so sharp that you can clearly see diffraction setting in at f11. Distortions are pretty low for such a wide-angle lens.
Following is a direct comparison of the Sigma (1st row) to the Nikon AF-S 24mm f1.4 (2nd row) and the Samyang (last row) at f1.4:

sigma_24f1-4art_1-4

Above: Sigma 24/1.4 Art at 24mm, f1.4

nikon_24f1-4g_1-4

Above: Nikon 24/1.4G at 24mm, f1.4

samyang_24f1-4_1-4_79434

Above: Samyang 24/1.4 at 24mm, f1.4

In the center the Sigma produces the sharpest image followed by the Nikon and the Samyang. In the DX-corner the order is reversed: the Samyang leads followed by the Nikon. The Sigma is only third place. In the FX-corner all three lenses perform very similar with a slight advantage for the Sigma. Regarding field curvature at this distance: The crops of the Samyang were all taken from the same shot while both the Nikon and the Sigma needed some slight focus optimization indicating a curved field.



Performance at long distances

The Siemens-star test-targets are shot at a distance of 40x focal length. But performance of lenses also depends on the shooting distance. Therefore I do another series of test-shots of a landscape dubbed the “Unremarkables” where you can measure distances in km, not meter. I use this scene to show you how the lenses perform when almost everything is at infinity. I set White Balance to a standard daylight value to make them comparable across lenses shot at the same day and also try to make exposure comparable. There’s no tinkering with vignette-control so you see it here as it is produced by the lens. Focus was manually acquired at the largest aperture in live-view and not changed for other apertures.

You can click on the image to access the large original. Please respect our copyright and only use those images for personal use.

The main image shows the complete scene at maximum aperture to give you an impression of the angle of view and to judge vignetting. This is followed by one row of 100% crops from f1.4 to f8 each from the middle, the APS-C/DX-corner and the right FF/FX-corner. The atmosphere was pretty hazy on that morning but I had no other chance to shoot all three 24/1.4 lenses at the same time.

You can access the respective shots up to f16 via the links beneath the main image.

Sigma 24/1.4 Art shot with Nikon D810

sigma_24f1-4art_1-4_78353_3k

Above: at 24mm, f1.4; also available at f2.0, f2.8, f4.0, f5.6, f8.0, f11

sigma_24f1-4art_1-4_78353_crops

Above: 24mm, f1.4; 100% crop from center, APS-C/DX-corner, FF/FX-corner

sigma_24f1-4art_2-0

Above: 24mm, f2.0; 100% crop from center, APS-C/DX-corner, FF/FX-corner

sigma_24f1-4art_2-8

Above: 24mm, f2.8; 100% crop from center, APS-C/DX-corner, FF/FX-corner

sigma_24f1-4art_4-0

Above: 24mm, f4.0; 100% crop from center, APS-C/DX-corner, FF/FX-corner

sigma_24f1-4art_5-6

Above: 24mm, f5.6; 100% crop from center, APS-C/DX-corner, FF/FX-corner

sigma_24f1-4art_8-0

Above: 24mm, f8.0; 100% crop from center, APS-C/DX-corner, FF/FX-corner

Performance is very good even wide open in the center and astonishingly good in the FX-corner. Stop down to f4.0 to get excellent clarity across the sensor and very low vignetting. I shot the same scene within minutes with the Nikon 24/1.4G and the Samyang 24/1.4 for comparison:

sigma_24f1-4art_1-4_78353_crops

Above: Sigma 24/1.4 Art at f1.4; 100% crop from center, APS-C/DX-corner, FF/FX-corner

nikon_24f1-4g_f1-4_78417_crops

Above: Nikon 24/1.4G at f1.4; 100% crop from center, APS-C/DX-corner, FF/FX-corner

samyang_24f1-4_f1-4_78454_crops

Above: Samyang 24/1.4 at f1.4; 100% crop from center, APS-C/DX-corner, FF/FX-corner

Of the three lenses the Sigma is the best in the infinity-shot wide open although it seems to have a bit more vignetting than the Nikon. The Samyang could not translate its good performance at the close-up test to this landscape-shot. But mind you: its performance in the FX-corner at f1.4 is still amazing.



Vignetting

To make it easier to compare light fall-off in the corners of a full-frame sensor I’ve arranged a series of three shots each with the Sigma (1st row), the Nikon (2nd row), and the Samyang (last row) at different apertures. From left to right: f1.4, f2.0, and f2.8:

fall-off_sigma_24f1-4art

Above: Sigma 24/1.4 Art at f1.4, f2.0, f2.8

fall-off_nikon_24f1-4g

Above: Nikon 24/1.4G at f1.4, f2.0, f2.8

fall-off_samyang_24f1-4

Above: Samyang 24/1.4 at f1.4, f2.0, f2.8

As you can see, the differences under controlled conditions are minimal.



Rendering of point-light sources at night-shots

Night-shots pose a different challenge for lenses as the contrast is even higher than under bright sun and point-light sources can reveal some weaknesses such as coma, haloing and color-aberrations that do not show up as prominently in other test-shots. The 100% crops below the main image show the effect of coma in the FF/FX corner of the Sigma and the competition at various apertures. From f4.0 the effect is negligible:

sigma_24f1-4art_f1-4_78949_3k

Above: Sigma 24/1.4 Art at f1.4; also available at f2.0, f2.8, f4.0, f5.6

sigma_24f1-4art_f1-4_78949_crops

Above: Sigma 24/1.4 Art; FX-corner at f1.4 (left), f2.8 (middle), f4.0 (right)

nikon_24f1-4g_f1-4_78934_crops

Above: Nikon 24/1.4G; FX-corner at f1.4 (left), f2.8 (middle), f4.0 (right)

samyang_24f1-4_f1-4_78924_crops

Above: Samyang 24/1.4; FX-corner at f1.4 (left), f2.8 (middle), f4.0 (right)

The Samyang produces very little coma, the Nikon is the worst and the Sigma is somewhere in-between.



Rendering of out-of-focus point-light sources

This test is for the rendering of point-light sources in an out-of-focus background. The circle of confusion that is produced by this test is pretty indicative of Bokeh performance (in the background) and light fall-off. Ideally the out-of-focus image of the point-light is evenly lit and perfectly circular, with no “onion-rings”, and without coloration. Large aperture lenses normally produce an effect known as “cat’s eye” the further away from the optical axis the point-light is projected. This is due to optical vignetting in the lens barrel when light enters the lens from an angle.

sigma_24f1-4art_f1-4_78909_3k

Above: Sigma 24/1.4 Art at f1.4; also available at f2.0, f2.8, f4.0, f5.6

sigma_24f1-4art_f1-4_78909_crops

Above: Sigma 24/1.4 Art at f1.4. 50% crop from center, APS-C/DX-corner, FF/FX-corner.

As the 50% crops above show: The Sigma 24/1.4 Art produces not the fattest circle of confusion. But that was not to be expected with a 24mm lens. It exhibits only slight onion rings and the light-distribution across the circle is relatively even. Outlining is also moderate unless you look into the FF/FX-corner where the “Bokeh ball” is also seriously squeezed. There seems to be no clipping from the mirror-box. Let’s see how the Nikon and Samyang compare:

nikon_24f1-4g_f1-4_78914_crops

Above: Nikon 24/1.4G at f1.4. 50% crop from center, APS-C/DX-corner, FF/FX-corner.

samyang_24f1-4_f1-4_78919_crops

Above: Samyang 24/1.4 at f1.4. 50% crop from center, APS-C/DX-corner, FF/FX-corner.

The Nikon produces slightly bigger Bokeh balls than the Sigma but it also shows a more intense outlining in the center and the borders of the APS-C/DX image-circle which is also colored green from the stronger longitudinal CAs. The circles of confusion (coc) produced by the Samyang is nothing I’ve ever seen before: It is smaller than from the other two lense and does exhibit some onion-rings but overall the inner structure of the Bokeh ball is freckled. This makes the coc in the center look more fluffy than from the competition – which is a good thing. But it may also be the reason that the Samyang is not the most contrasty lens in the center.



Now let’s see how this analysis of out-of-focus point-light sources translates into Bokeh-performance shooting a book-shelf.

bookeh_sigma_24f1-4art_f1-4_78816_3k

Above: Sigma 24/1.4 Art at f1.4. Click image to access original at Flickr; also available at f2.0, f2.8, f4.0, f5.6

bookeh_sigma_24f1-4art_f1-4_78816_crops

Above: Sigma 24/1.4 Art at f1.4. 50% crop from foreground, middle-ground, background

The (less important) foreground is nicely blurred and the middle ground stays clean of color artifact often seen with other large aperture lenses. But the background shows some outlining which makes the Bokeh a bit nervous. Let’s see how the Nikon and Samyang compare:

bookeh_nikon_24f1-4g_f1-4_78804_crops

Above: Nikon 24/1.4G at f1.4. 50% crop from foreground, middle-ground, background

bookeh_samyang_24f1-4_f1-4_78810_crops

Above: Samyang 24/1.4 at f1.4. 50% crop from foreground, middle-ground, background

The foreground is best with the Sigma followed by the Nikon and the Samyang. The middle-ground shows slightly greenish coloration from the Nikon and the Samyang. And in the background the Samyang comes up as the surprise winner: it nicely blurs the letters on the back of the books, while the Nikon perhaps has a little less outlining than the Sigma but still looks nervous in comparison.



Flare/ghosting

Catching a strong light-source shining directly into the lens is a major risk with wide-angle lenses – even with the lens-hood attached. That could produce strange colorful ghosts-images or reduce contrast considerably through flare and glare. The appearance of flare and ghosting depends on factors like the aperture and the angle of the light hitting the lens. So to judge the proclivity of the Sigma for these artifacts I went through a series of well calculated shots against a strong light source to provoke glare and ghosting.

The results are relatively good: As long as the light was clearly outside the image-frame I found only minor artifacts – although the light was shining directly into the lens. But when the light was inside the image it provoked flare and some streaking artifacts:

flare_sigma_24f1-4art_f8_78847

Above: Flare and ghosting. Strong light hitting the Sigma 24/1.4 Art from inside the image frame at f8.0

So you have to watch out a bit for strong light-sources inside the frame. But other than that flare and ghosting of this lens is is relatively well controlled.
