Canon PowerShot SX700 HS review

Quality

Canon PowerShot SX700 HS vs Panasonic Lumix TZ60 / ZS40 vs Sony HX50V

To compare real-life performance I shot this scene with the Canon PowerShot SX700 HS, Panasonic Lumix TZ60 / ZS40 and the Sony Cyber-shot HX50V within a few moments of each other using their best quality JPEG settings.

Both the Panasonic Lumix TZ60 / ZS40 and Sony HX50V were zoomed in a nudge from their maximum wide angle lens setting to provide an equivalent field of view to the 25mm maximum wide angle of the PowerShot SX700 HS.

I’d previously determined that the best results on the PowerShot SX700 HS were produced at f4, so for this test all three cameras were set to f4 in Aperture priority mode. Image stabilisation was turned off and the camera settings were otherwise left on the defaults.

The image above was taken with the Canon PowerShot SX700 HS. The camera was set to Aperture priority mode and at f4 with the sensitivity set to 100 ISO the PowerShot SX700 HS selected a shutter speed of 1/640. The Lumix TZ60 / ZS40, also set to f4 at 100 ISO metered a shutter speed of 1/400 and at its base 80 ISO sensitivity, the Sony HX50V selected an exposure of 1/500 at f4. As usual the crops are taken from the areas marked in red above.

Overall, the crops from the PowerShot SX700 HS show a good level of detail with nice clean edges. However, the first crop, which is from close to the left edge of the frame is the exception. The detail is a little soft, edges look slightly fuzzy and the subtle textures in the trees at the bottom of the frame aren’t holding up very well. On the upside, there’s no evidence of colour fringing and this edge crop is the worst of the set.

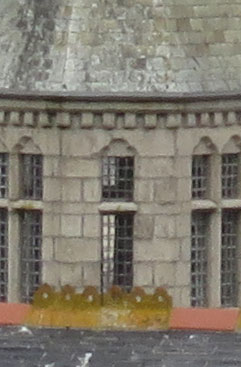

Moving on to the second crop from closer to the centre of the frame, here there’s visibly more detail and the edges are much sharper. Similarly in the third crop, you can make out the weather vane on the church tower as well as some of the window detailing. You can’t really make out the finer detail in the stonework of the church, but you can just about see the hands of the clock which reads twenty past four. In the final crop the lighthouse is a distinct white cylinder and you can see some detail on the island it occupies. Overall I’d say this is a very positive result for the SX700 HS.

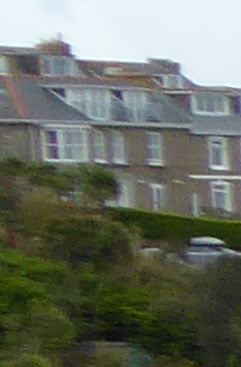

Like the PowerShot SX700 HS, the Lumix TZ60 / ZS40 puts its worst foot forward with a crop from the frame edge that that looks so fuzzy you’d be forgiven for thinking camera shake was to blame. Even larger detail is hard to make out and the edges are a blur. But the next crop from closer to the middle of the frame shows a dramatic improvement with nice crisp edges and a good level of detail. You can make out the hands on the church clock, but not quite as distinctly, if that’s the word, as in the SX700 HS crop. In the final crop the lighthouse and island lack the definition of the SX700 crop alongside. So a question mark over the edge performance of the TZ60 / ZS40’s zoom lens at close to the maximum wide angle setting, but an otherwise good performance, albeit not quite up to the high standard set by the PowerShot SX700 HS.

The Sony HX50V performs comparatively well at the edge of the frame with a first crop that has cleaner edges than either the PowerShot SX700 HS or the Lumix TZ60 / ZS40. Again, things improve in the two crops from closer to the middle of the frame and there’s very little quality difference between the three cameras here. The detail from the 20.4 Megapixel Sony sensor is a little bigger than that of the 18.1 Megapixel Lumix TZ60 / ZS40, which is in turn a little larger than the crops from the 16 Megapixel PowerShot SX700 HS. Try as I might, though, I can’t see any more detail in the Sony crops. Finally the HX50V takes a bit of a dip at the end with a lighthouse that’s only just visible.

Scroll down the page to see how these models compare when zoomed in to 170mm and at their maximum zoom ranges. Alternatively, to see how they compare at higher sensitivities check out my Canon SX700 HS noise results.

PowerShot SX700 HS
Lumix TZ60 ZS40
Sony HX50 / HX60
f4, 100 ISO
f4, 100 ISO
f4, 80 ISO
f4, 100 ISO
f4, 100 ISO
f4, 80 ISO
f4, 100 ISO
f4, 100 ISO
f4, 80 ISO
f4, 100 ISO
f4, 100 ISO
f4, 80 ISO

Canon PowerShot SX700 HS vs Panasonic Lumix TZ60 / ZS40 vs Sony HX50 Quality at approx 170mm

For this next test I zoomed all three cameras in to an equivalent focal length of around 170mm. At this zoom setting the widest available aperture on the PowerShot SX700 HS is f5.6 so this was chosen for the SX700 HS and the Lumix TZ60 /ZS40. The Sony HX50V was set to f6.3, the widest available aperture at the same zoom zoom setting. As usual, the crops are taken from the areas marked by the red rectangles above.

As before, the area and size of the detail in these crops varies because of the different sensor resolutions with the 16 Megapixel PowerShot SX700 HS showing the largest area with the smallest detail, followed by the 18.1 Megapixel Lumix TZ60 / ZS40, then the 20.4 Megapixel Sony HX50V.

This time we start in the middle of the frame before moving out towards the edge. The first crop looks good with plenty of detail in the stonework and lattice windows, though there’s a little noise texture that just takes the edge off it. The second and third crops look sharp, but the noise is still visible and the detail at the bottom of the third crop looks a little smeared. The final crop from close to the frame edge also looks soft, but the difference between the lens quality at the centre and the edges isn’t all that great and overall at this focal length the PowerShot SX700 HS produces images comparable to its wide angle setting.

It’s a similar story with Lumix TZ60 / ZS40 which produces a set of crops that are very closely matched with those from the PowerShot SX700 HS. In fact, if you take a good hard look you might conclude that at this focal length there’s actually a little more detail in the TZ60 / ZS40 crops. Certainly quality at the edge of the frame looks to be an issue that only affects the TZ60 / ZS40 at wide angle settings.

The Sony HX50V crops generally look a little clumpy at this focal length with less fine detail in evidence. This isn’t something you’d be likely to notice at anything other than 100 percent viewing sizes, but it’s there all the same and it’ll be interesting to see how the Sony HX50V crops compare when fully zoomed in and how the quality responds to increasing ISO sensitivies in my noise tests on the next page. Scroll down for the maximum zoom results, or head to my Canon SX700 HS noise results.

PowerShot SX700 HS
Lumix TZ60 ZS40
Sony HX50
f5.6, 100 ISO
f5.6, 100 ISO
f6.3, 80 ISO
f5.6, 100 ISO
f5.6, 100 ISO
f6.3, 80 ISO
f5.6, 100 ISO
f5.6, 100 ISO
f6.3, 80 ISO
f5.6, 100 ISO
f5.6, 100 ISO
f6.3, 80 ISO

Canon PowerShot SX700 HS vs Panasonic Lumix TZ60 / ZS40 vs Sony HX50 Quality at approx 750mm



For this final test I zoomed all three cameras in to their maximum focal length – 750mm on the PowerShot SX700 HS, and 720mm on the Lumix TZ60 / ZS40 and Sony HX50V. Again, the exposure was left in Aperture priority mode and set to f8 on all three cameras. As usual, the crops are taken from the areas marked by the red rectangles.

The first crop from the PowerShot SX700 HS is from the same area of the scene as the first crop in the previous set taken at 170mm. And it’s a pretty good result, yes there’s a speckled texture and the stonework on either side of the window looks blocky, but there’s still a good level of detail and the edges are clean and crisp. The remaining crops look, for want of a better word, a little wobbly. There’s quite a bit of texture around and the horizontal and vertical edges are ill-defined and inconsistent. It’s worth noting once again, though, that you have to be at, or close to 100 percent viewing size to notice and at smaller sizes it would be a challenge to spot the quality difference at either end of the focal range. Overall this is an excellent result for the PowerShot SX700 HS.

It’s interesting that at the maximum focal length the quality of the Lumix TZ60 / ZS40 crops is again very closely matched to the PowerShot SX700 HS. I still reckon there’s marginally more detail being picked up by the Lumix TZ60 / ZS40’s sensor though. The Sony HX50V is suffering even more from the clumpiness that affected it at 170mm and here its having quite a detrimental affect on the level of detail in the crops.

PowerShot SX700 HS
Lumix TZ60 ZS40
Sony HX50
f8, 100 ISO
f8, 100 ISO
f8, 80 ISO
f8, 100 ISO
f8, 100 ISO
f8, 80 ISO
f8, 100 ISO
f8, 100 ISO
f8, 80 ISO
f8, 100 ISO
f8, 100 ISO
f8, 80 ISO

Canon PowerShot SX700 HS vs Panasonic Lumix TZ60 / ZS40 vs Sony HX50V noise

To compare noise levels under real-life conditions, I shot this scene with the Canon PowerShot SX700 HS, Panasonic Lumix TZ60 / ZS40 and Sony Cyber-shot HX50V within a few moments of each other using their best quality JPEG settings at each of their ISO sensitivity settings.

Both the Panasonic Lumix TZ60 / ZS40 and the Sony HX50V were zoomed in a nudge from their maximum wide angle lens setting to provide an equivalent field of view to the 25mm maximum wide angle of the PowerShot SX700 HS.

I’d previously determined that the best results on the PowerShot SX700 HS were produced at f4, so for this test all three cameras were set to f4 in Aperture priority mode. Image stabilisation was turned off and the camera settings were otherwise left on the defaults.

The image above was taken with the PowerShot SX700 HS. The SX700 HS was set to f4 in Aperture priority mode and at its base 100 ISO sensitivity setting, selected a shutter speed of 0.8s. At its base 100 ISO sensitivity setting the Lumix TZ60 ZS40 metered an exposure of 0.6s and the Sony HX50V metered 08.s at 80 ISO.

Just to remind you that the three sensors we’re comparing in the PowerShot SX700 HS, the Lumix TZ60 / ZS40 and the Cyber-shot HX50V have resolutions of 16, 18.1 and 20.4 Megapixels respectively, so the crop area becomes smaller and the detail is bigger as you go from left to right in the table below.

Moving onto the crops, the first 100 ISO crop from the PowerShot SX700 HS looks very respectable. There is a little noise texture here but it’s pretty unobtrusive, most noticeable in areas of flat colour, and doesn’t obscure any detail. At 200 ISO there’s visibly more of it, enough to start nibbling at the edges of image detail – for example along the top of the top of the sign that says ‘Euchristic prayer’. It’s still at acceptably low levels, though, and while it takes a another step up at 400 ISO the noise reduction copes well with a slight softening and loss of contrast as a result.

Things are starting to look a little blocky at 800 ISO and at 1600 ISO there’s a pervading graininess that’s beginning to degrade edges as well as medium sized detail. The grain has a natural look to it though and there’s still plenty of detail to see even in the 3200 ISO crop. While the SX700’s top 3200 ISO setting looks distinctly blotchy at 100 percent at smaller sizes it looks perfectly passable – for once a top ISO senstitivity setting that can be relied upon for more than the usual low-light emergencies. All in all, this is an excellent reult for the PowerShot SX700 HS.

The Lumix TZ60 / ZS40 base 100 ISO crop looks significantly less noisy than the PowerShot SX700 HS and in the lower range – up to 400 ISO it looks to me like the Lumix TZ60 / ZS40 has the edge. From 800 ISO up though, the tables are turned and it’s the PowerShot SX700 HS that comes out on top. Whether this is due to sensor performance or better noise reduction on the SX700 HS, at the higher sensitivities its images look less grainy and retain more detail.

The HX50V has a lower 80 ISO base sensitivity setting which looks more or less noise free and slightly superior to the 100 ISO crops of the other two models. At 100 ISO it’s a different story though, there is visible noise, albeit low-level, but the HX50V 100 ISO crop looks slightly inferior to the other two. So the message for HX50V owners is to stick with the base 80 ISO sensitivity where possible. As you’d expect, as the sensitivity increases, so does the noise, but while the HX50V’s noise is qualitatively different – it looks clumpier and less grainy – I’d say it’s no worse than the SX700 HS up to 3200 ISO. And let’s not forget, the HX50V keeps on going, with a maximum sensitivity of 12800 ISO.

Al three models have composite modes that shoot a quick burst of images with the sensitivity set automatically and produce a low-noise composite shot. These are shown in the final row of the comparison table below though with each model choosing a different sensitivity it’s hard to draw quality comparisons. Generally though, all three produce a result with less noise than the single-shot ISO equivalent, though there’s also loss of detail due to smoothing.

Now head over to my Canon SX700HS sample images to see some more real-life shots in a variety of conditions, or head straight for my verdict.

PowerShot SX700 HS
Lumix TZ60 / ZS40
Sony HX50 / HX60
80 ISO Not available
80 ISO Not available
80 ISO
100 ISO
100 ISO
100 ISO
200 ISO
200 ISO
200 ISO
400 ISO
400 ISO
400 ISO
800 ISO
800 ISO
800 ISO
1600 ISO
1600 ISO
1600 ISO
3200 ISO
3200 ISO
3200 ISO
6400 ISO Not available
6400 ISO
6400 ISO
12800 ISO Not available
12800 ISO Not available
12800 ISO
Handheld NightScene 1600 ISO
Handheld Night Shot 400 ISO

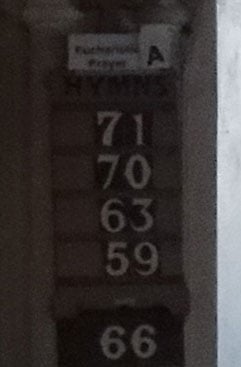

Hand-held Twilight 800 ISO
