With the Moon rather getting in the way of deep sky astrophotography I put MaximDL to good use this evening as it can be set up to capture long sequences of images. I've already captured 2GB of data and there'll be a further 1GB waiting for me when I wake up. Having decided on the exposure sequences I'll use in future I've started capturing a library of calibration frames. It gets complicated when RBI is considered as images can be taken either with or without an infra-red LED flooding the sensor before the main exposure. I've discovered that whether I enable the IR flood or not it also helps if I take a 100 second "dark" before the required exposure - the idea is to let some of the RBI signal dissipate.

So, 25 Bias frames for each of RBI flood and no RBI flood were quick and easy to do. Equally 5 non-RBI 200 second "darks" (more to follow) were quick. 20 x 200 second RBI flood "darks" only took a couple of hours and the software is currently working through a sequence of 15 x 1,000 second RBI flood "darks". More tomorrow. By the time I'm done I'll probably have captured 50 or 60 GB of data but fortunately once the master frames have been generated I can delete all of it. :twisted:

Bob.

_________________
Olympus OM-D E-M1 + M.Zuiko Digital ED 12-40mm f/2.8, Lumix 7-14mm f/4, Leica DG Summilux 15mm f/1.7 ASPH, M.Zuiko Digital 45mm 1:1.8, M.Zuiko Digital ED 75mm 1:1.8.
Leica D Vario-Elmar 14mm-150mm f/3.5 - f/5.6 ASPH.
OM-D E-M5, H-PS14042E, Gitzo GT1541T, Arca-Swiss Z1 DP ball-head.
Astrophotography: TEC 140 'scope, FLI ML16803 camera, ASA DDM60 Pro mount.


Top
 Profile

 Post subject:
PostPosted: Tue Jan 03, 2012 7:35 am
Offline
User avatar

Joined: Sun May 25, 2008 12:48 pm
Posts: 8032
Location: UK
Sounds like fun... never even heard of RBI before now!

_________________
Canon DSLRs: 7D, 5D2, 1D, 600D, 450D full spectrum, 300D IR mod
Lenses: EF 35/2, 50/1.8, 85/1.8, 135/2+SF, 28-80 V, 70-300L, 100-400L, TS-E 24/3.5L, MP-E 65, EF-S 15-85 IS
3rd party: Zeiss 2/50 makro, Samyang 8mm fisheye, Sigma 150 macro, 120-300 f/2.8 OS, Celestron 1325/13
Tinies: Sony HX9V.


Top
 Profile

 Post subject:
PostPosted: Tue Jan 03, 2012 12:34 pm
Offline
Moderator
User avatar

Joined: Sat Sep 30, 2006 4:30 pm
Posts: 9823
Location: UK
Hi popo,

Not sure about the fun bit but it's definitely necessary. Because I have the luxury of being able to set the temperature of the sensor to -25°C (my chosen working figure) at least I can do the calibration frame exposures with the camera indoors.

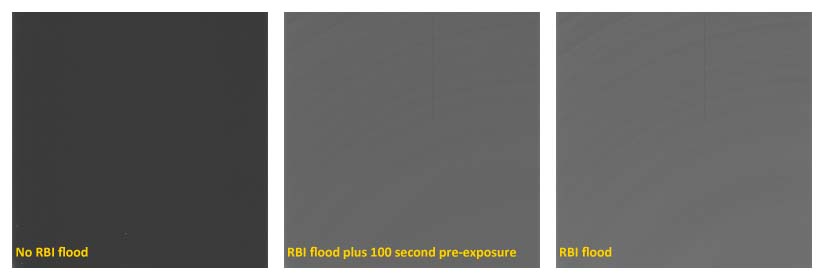

RBI definitely exists. As an illustration here are three dark frames straight out of the camera with no processing other than exactly the same stretch applied to all three:
